◆Semi-automatic hot melt adhesive labeling machine, with diverse functions, can be widely seen on paper tube labeling, firework tube labeling, and glass bottle paste labeling. It has high labeling accuracy and fast efficiency. It is widely used in food, paper tube, fireworks, Wool, and other industries.

◆Labeling speed: 18-23 bottles/min

• Product Details

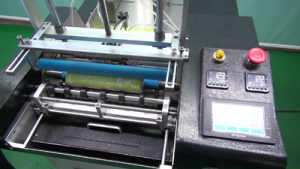

Introduction of Semi-Automatic Hot Melt Adhesive Labeling Machine

Application scope of semi-automatic hot melt adhesive labeling machine :

◆Applicable label: paper label (hot melt glue required).
◆Applicable products: products that require hot melt adhesive labels to be attached to the circumferential surface.
◆Application industry: widely used in food, paper tube, fireworks, wool, and other industries.

◆Application examples: paper tube labeling, firework tube labeling, paste labeling on glass bottles, woolen packaging labeling, etc.

Features of Semi-Automatic Hot Melt Adhesive Labeling Machine :

◆The semi-automatic hot melt adhesive labeling machine is particularly easy to change the bottle type and label, and it can be completed in five minutes without changing any parts. Through a simple one-key setting, the equipment can easily switch between full gluing and gluing at both ends (the label can be glued on the whole surface, or you can choose to glue only the label overlap, which greatly saves the cost of glue).
◆The operator only needs to put the labels into the label library in batches, photoelectric automatic detection, label picking, gluing, and labeling are automatically completed by the machine within one second.
◆The semi-automatic hot melt adhesive labeling machine has built-in automatic temperature control to keep the glue at a constant temperature. The thyristor automatically adjusts the pressure to make the glue temperature more accurate and can save 50% of electricity.
◆The film thickness can be adjusted arbitrarily between 0.05MM-0.15MM. Accurate glue adjusting mechanism helps to save the amount of hot melt glue used.
◆The improved three-roller round labeling makes the label and can body more closely attached, and the labeling is more beautiful and smooth. Even large-diameter soft and thin-walled cans can be continuously labeled well.
◆The vacuum sucker pre-sorts the second label each time the previous label is applied to ensure that there is no double-sheet phenomenon.

Technical parameters of semi-automatic hot melt adhesive labeling machine :

The following are the technical parameters of the standard model, and other special requirements and functions can be customized.
◆Labeling speed: 18-23pcs/min
◆Applicable bottle diameter: Φ30-Φ160mm
◆Applicable label height: 80-350mm
◆Labeling accuracy: ±1mm
◆Power supply voltage: 220V 50Hz
◆Total power: 2.3KW

◆Weight of the whole machine: 260KG
